Reach-T6

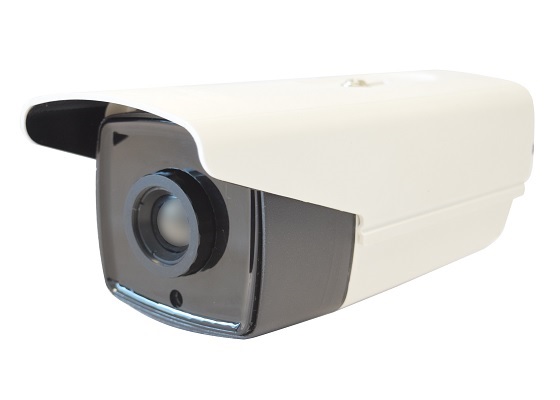

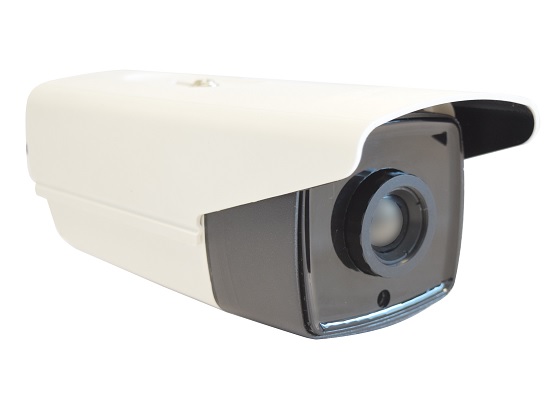

iTherml thermal imaging camera Reach-T6 are with high accuracy (up to ±0.3℃) of temperature measurement, also with IP video and analog video output simultaneously, easy to apply for one station or network to monitoring at the public places.
Reach-T6 are with high performance which are including high accuracy, temperature measurement up to 8m, Auto alarm with built-in speaker and color on the screen. They can be widely used in various public places, such as stations, airports, subways, hospitals, and more, to protect public health and safety.
■ 640 x 480 pixels
■ Thermal sensitivity (NETD) <50mK
■ Hight accuracy for temperature detection: ≤ ±0.3℃
■ Auto tracking the high temperature of people’s face.
■ Auto alarm by built-in speaker & color
■ Used at crowded public places for fever human detection
Detector Data
|
|
Detector Type
|
Uncooled Microbolometer detector
|
IR resolution
|
640 x 480 pixels
|
Pixel pitch
|
17μm
|
Spectral range
|
8~14μm
|
Thermal Camera
|
|
Focal length | FOV
|
13mm | 28° x 21°
|
21mm | 29° x22°
|
FFC duration
|
<0.5 s
|
NETD
|
<50mK @ f/1.0
|
Video output
|
IP (RJ45) & Analog, PAL
|
Camera setting (Web)
|
Image mode (AGC), false color, black body setting, Alarm setting,
system settings, etc
|
Temperature measurement
|
|
Temperature measurement range
|
26℃ ~ +46℃
|
Temperature Accuracy
|
≤ ±0.3℃(w/black body calibration)
≤ ±0.5℃(w/o black body calibration)
|
Real-time spot temp detection
|
Yes, Real time temp monitoring at any point in the FOV
|
Auto tracking
|
Yes, track high temp
|
Auto alarm
|
Yes, built-in speaker, color displayed
|
Temp alarm setting
|
Section, above, equal, less
|
Measurement distance
|
From 1.5m to 6.5m
|
Face recognition
|
Yes, with temp displayed
|
Calibration (optional)
|
Blackbody, auto calibration after setting.
|
Blackbody Target
surface uniformity
|
0.1℃
|
Blackbody temp
Stability accuracy
|
≤0.2℃
|
Physical Data
|
|
Power supply
|
VDC 12V for thermal camera;
VDC 24V for blackbody (optional)
|
Working temperature range
|
10℃~+30℃ (w/o blackbody)
10℃~+40℃ (w/ blackbody)
|
Working environment (recommended)
|
Indoor and windless environment use
|
Storage temperature range
|
-20℃~+60℃
|
Fixing port
|
UNC 1/4”
|
Packing Includes
|
|
Standard
|
Thermal camera, cables
|
Black body, Tripod
|
Optional
|
