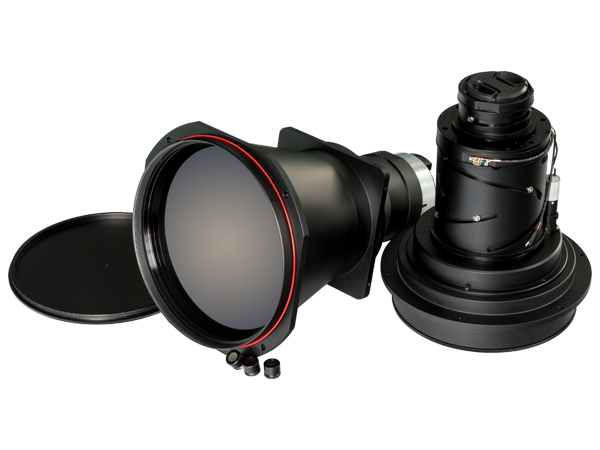

We are available to provide optical & mechanical design for Infrared Camera Lenses, we have standard optical Infrared Camera Lenses, also available to offer customized service for particular optical system applications, which including athermalized lens, manual lens, motorized lens, zoom lens, and with wide range of f/#.
For specific lens information, please contact with us directly (overseas@itherml.com) for detailed information.
Technical Features
| Focus length | 75mm | 100mm | 150mm | 210mm | 260mm | 300mm |
| f number | F1.0 | F1.0 | F1.0 | F1.3 | F1.3 | F1.3 |
| Resolution | FOV |
|
|
|
|
|
|
| 384 x 288 | 17um | 5.0° x 3.7° | 3.7° x 2.8° | 2.5° x 1.9° | 1.8° x 1.3° | 1.4° x 1.1° | 1.3° x 0.9° |
| 640 x 480 | 17um | 8.3° x 6.2° | 6.2° x 4.7° | 4.2° x 3.1° | 3.0° x 2.2° | 2.4° x 1.8° | 2.1° x 1.6° |
| 1280 x 1024 | 12um | 11.7° x 9.4° | 8.8° x 7.0° | 5.9° x 4.7° | 4.2° x 3.3° | 3.4° x 2.7° | 2.9° x 2.3° |
| Focus mechanism | motorized | motorized | motorized | motorized | motorized | motorized |
| Weight | <435g | <776g | <1900g | <2275g | <4260g | <4540g |
| Max. dimensions | ø87.0 x 91.6 mm | ø112.0 x 129.0 mm | ø164.0 x 190.0 mm | ø179.0 x 256.8 mm | ø214.0 x 342.4 mm | ø245 x 352.8 mm |
| Sealing (first optical lens) | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Working temp. range | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ |
|
|
|
|
|
|
|
|

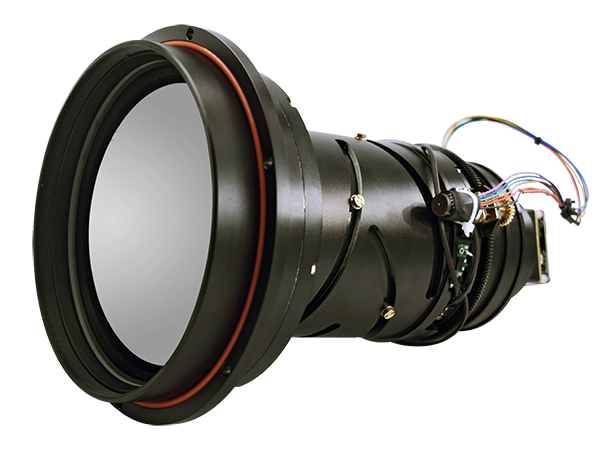

| Focus length | 15-60mm | 25-75mm | 25-100mm | 25-150mm | 25-225mm | 35-150mm |
| f number | F0.8@f15 | F1.0@f60 | F0.9@f25 | F1.0@f75 | F0.9@f25 | F1.1@f100 | F0.8@f25 | F1.2@f150 | F0.85@f25 | F1.3@f225 | F0.85@30mm | F1.2@150mm |
| Resolution | FOV |
|
|
|
|
|
|
| 384 x 288 | 17um |
f15: 24.5° x 18.5° f60: 6.2° x 4.8° |
f25: 14.9° x 11.2° f75: 5.0° x 3.7° |
f25: 14.9° x 11.2° f100: 3.7° x 2.8° |
f25: 14.9° x 11.2° f150: 2.5° x 1.9° |
f25: 14.9° x 11.2° f225: 1.7° x 1.2° |
f30: 12.4° x 9.3° f150: 2.5° x 1.9° |
| 640 x 480 | 17um |
f15: 39.9° x 30.4° f60: 10.4° x 7.8° |
f25: 24.5° x 18.5° f75: 8.3° x 6.2° |
f25: 24.5° x 18.5° f100: 6.2° x 4.7° |
f25: 24.5° x 18.5° f150: 4.1° x 3.1° |
f25: 24.5° x 18.5° f225: 2.8° x 2.1° |
f30: 20.6° x 15.5° f150: 4.1° x 3.1° |
| 1280 x 1024 | 12um |
f15: 54.22° x 44.55° f60: 14.59° x 11.69 |
f25: 34.1° x 27.6° f75: 11.7° x 9.4° |
f25: 34.1° x 27.6° f100: 8.8° x 7.0° |
f25: 34.1° x 27.6° f150: 5.9° x 4.7° |
f25: 34.1° x 27.6° f225: 3.9° x 3.1° |
f30: 28.7° x 23.1° f150: 5.9° x 4.7° |
| Focus mechanism | motorized | motorized | motorized | motorized | motorized | motorized |
| Weight | <1200kg | <1400g | <2200g | <2100g | <4000g | <4200g |
| Max. dimensions | ø123.0 x 144.6 mm | ø121.5 x 157.2 mm | ø130.0 x 191.0 mm | ø158.0 x 191.0 mm | ø196.0 x 246.3 mm | ø178.4 x 274.4 mm |
| Sealing (first optical lens) | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Working temp. range | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ |
