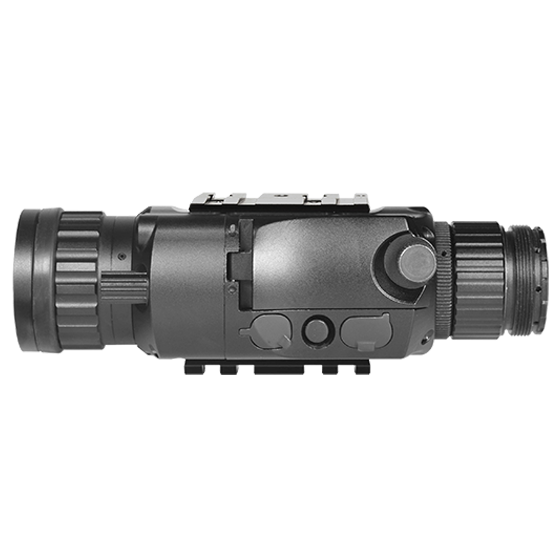

Thermal Imaging Attachment

Owlook-C5

iTherml Owlook-C series are a versatile thermal imaging attachment, which features a 12um pixel pitch sensor core, to deliver brilliant thermal image quality with advanced image processing, and transform the daylight optics into a thermal imager. They also can be taken as a portable Thermal Monocular, or Thermal Scope as well by menu setting. On-board image snapshots in 400,000 pcs or video recording in 40 hours, and WIFI feature which make them connect to external display devices allowing other parties to view the observed image.

The Owlook-C series can be quickly mounted and dismounted without re-zeroing, and with lightweight & compact volume, to make them carry in the pocket. With powerful features and easy operation, they seek the heat of objects in total darkness and harsh environment which are suitable for further observation, search & rescue, law enforcement and longstanding hunting, and more.

Technical Features

■ Monoculare multifunctions 2-in-1: Clip-on & Standalone
■ Fast transformation for Dual-Use: Menu setting
■ NETD< 40mk: High quality image
■ No need re-zeroing: Fast to operate
■ Picture-in-Picture: Improve accuracy by 2 x magnified image
■ Hot Spot tracking: Easy to find out the target
■ Built-in 32G: 400,000 pcs snapshots or 40 hours video stored
■ Wireless connection: WIFI
■ Working time: Up to 7 hours
■ Rotary knob: One-hand operation
■ Large display: 0.39" 1440 x 1080 pixels OLED
■ IP67 sealed: For outdoor operation
■ All-metal bodyshell: Rugged and durable design

Detector Data

IR resolution

384 x 288 pixels, uncooled Vox FPA

Pixel pitch

12μm (17μm optional)

Spectral range

8~14μm

Function

Transform Clip-on into Standalone

By Menu setting

Image Presentation

FFC Duration

< 0.5s(shutterless optional, 17 μm)

Thermal sensitivity(NETD)

<40mK @ f/1.0, 300k

Time to image

<3s

Frequency

50Hz

Camera control

Image mode(AGC), digital zoom, Contrast, Brightness,Sharpness, Denoise, System settings

Image mode

WFG, WBG,Manual, eWFG, Ewbg

Image video output

Monochrome & false color video

Color palette

Whitehot, Blackhot, Iron, Rainbow, Sepia, Fire

Digital zoom

Continuous digital zoom (100 - 400)

Image flip

Supported

Hot-spot tracking

Supported

Cross shift resolution

1 OLED pixel

Ballistic

Standalone: Clip-on:
8 (user defined) NA

System Features

Storage

Built-in 32G (128G optional),400,000 pcs Snapshots or 40 hours Video restored

Video playback

Supported (optional)

WIFI

Yes, up to 12m (optional)

IR laser pointer

5mW, 800nm (optional)

LRF

1000m (optional)

DMC

Supported (optional)

Mounting bracket

Yes

Adapter ring mount

M34 x 1

Shock

<750g（1200g optional）

Encapsulation

IP67

Lens Data

Focus length

Standalone：   Clip-on：
25@f1.0             25@12μm
35@f1.0             35@17μm
50@f1.2

Focus range

5 m to infinity

FOV

10.6° x 8°@17μm,35mm
7.4° x 5.6°@17μm, 50mm
10.5° x 8°@12μm, 25mm
7.5° x 5.6°@12μm, 35mm
5.2° x 4°@12μm, 50mm

Detection Range
(Target size: 1.7 x 0.5m)

17μm
35mm: 10300 m
50mm: 1470 m

Display

Type

0.39" 1440 x 1080 OLED, colorful

Eyepiece

Eye Relief (mm)

<30 <60

Diopter

-5 - +5

Interface

USB port

Type C, Data transfer & external power charging

Headphone Jack

3.5mm, RS232 & CVBS output

Power

Battery

3.7V, 1000mAh x 2pcs 183502, (2xCR123A optional)(Specified at the order purchased)

Working time with battery

7hrs @ base (at 25℃)

External power supply

5V Micro USB, Type-C

Environment Data

Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+60℃

Physical Data

Weight (approx.)

500g (including battery)

Size (HWL)

57 x 54 x 193 mm (w/35mm lens & rubber)

Packing Includes

Standard

Thermal imaging attachment, 3.5" Headphone Jack cable for Video & RS232 output

Optional

Type-C USB cable, Video cable, USB-RS233 cable, Mounting bracket
