Thermal Binoculars

Gemini-6

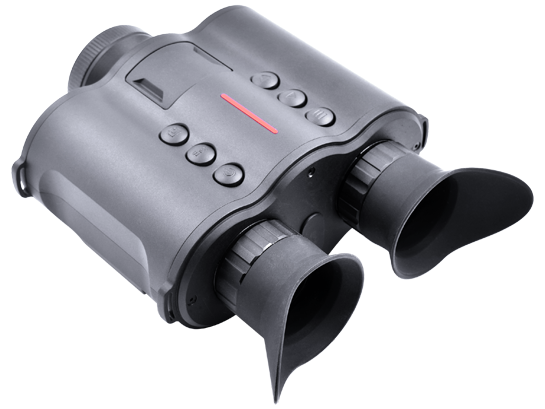

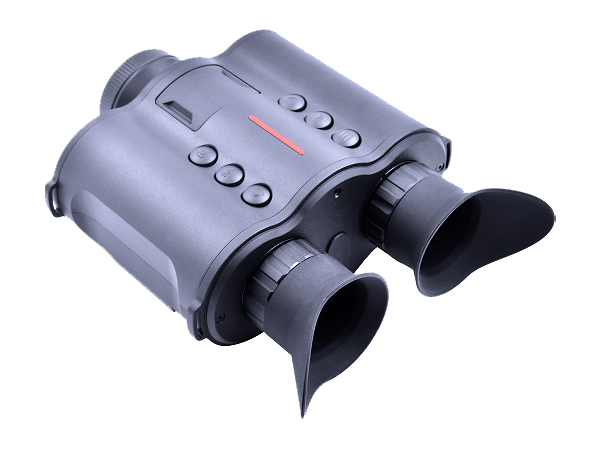

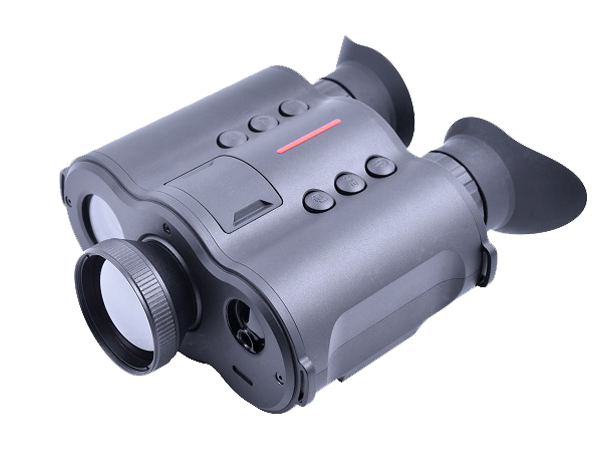

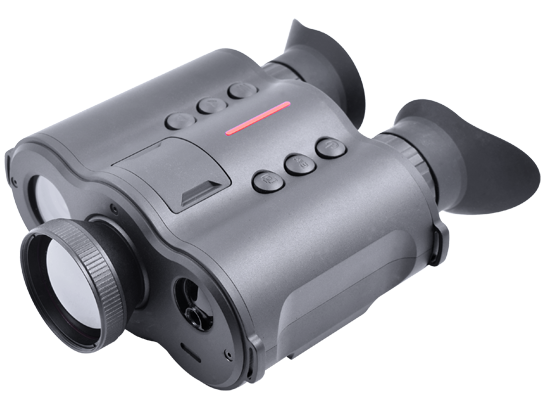

iTherml Handheld Thermal Binocular Gemini-6 & Gemini-3 are embedded with uncooled LWIR 12um Vox thermal module, low light module, and high resolution OLED display to provide vivid thermal video, visual video and fusion video at any harsh environment.

Thermal binocular Gemini-6 is integrated with DMC, LRF and GPS to make it easily detect & locate the hiding objects, and built-in storage & WIFI to assist the user to store and transfer data conveniently. It can be widely applied to scenarios such as long distance observation, law enforcement, search and rescue, and more.

Technical Features

■  Thermal channel & Visual channel
■  NETD<40mK
■  0.39" 1024 x 768 pixels OLED display
■  Bi-spectrum image fusion, P-I-P
■  Built-in LRF helps to get the target distance
■  Pictures snapshot & Video recording
■  WIFI transferring live video stream
■  Built-in DMC & GPS help to locate the objects at exact position
■  Local Album allows to browse pictures taken and videos recorded

Thermal Data

Detector Type

Uncooled LWIR Vox Microbolometer

IR resolution

640 x 512 pixels, 12μm

Spectral Range

8-14μm

Thermal Sensitivity (NETD)

≤40mK

Frequency

50Hz

Lens Data

Infrared Lens F

FOV Human(1.7m x 0.5m) Vehicle(2.3m x 2.3m)

D R I D R I

35mm (standard) 1.0

12.5° x 10° 1305m 326m 204m 3354m 839m 524m

50mm (optional) 1.2

8.8° x 7.0° 1865m 466m 291m 4792m 1198m 524m

Image Performance

Non Uniformity Calibration

Auto, Manual, <0.5s

Brightness & Contrast

Adjustable

Image Polarity

Digital Zoom

x1~x4, continuous zoom

Time setting

Supported

Low Light Data

Type

1/4 cmos

Max. Resolution

2592 x 1944

Lens (focus length)

16mm

Laser Rangefinder (Visibility≥10km | Humidity≤60km)

Wavelength

905nm

Detection Range

1500m

Accuracy

±1m at <400m, ±0.4% at >400m

Digital Compass

Azimuth Angle Accuracy

≤1°

Pitch Angle Accuracy

≤1°

GPS

Positioning Accuracy

±5m

WIFI

Transmission Distance

up to 12m

Image Display

Monitor

0.39" OLED, 1024 x 768 pixels

Thermal/low light Mode

Thermal view, Visual view, Image fusion view, P-I-P (optional)

Image Storage

Storage

Built-in storage, 64G

Snapshot

On-board image capturing

Record Video

On-board video recording

Pictures & Videos Playback

Supported

Power Supply

Battery type

2pcs 18650 batteries

Battery Operating Time

5 hours

Interface

Type-C USB

USB 3.0, external, data transfer

Communication

Wifi

Mounting

UNC 1/4"-20

Physical Data

Size

155 x 144 x 64 mm (with 35mm IR lens)
170 x 144 x 64 mm (with 50mm IR lens)

Weight

<900g (with 35mm IR lens)
<950g (with 50mm IR lens)

Encapsulation

IP66 (standard), IP67 (optional)

Environment Data

Operating Temperature

-30℃～+55℃

Storage Temperature

-40℃～+65℃

Humidity

≤90%
