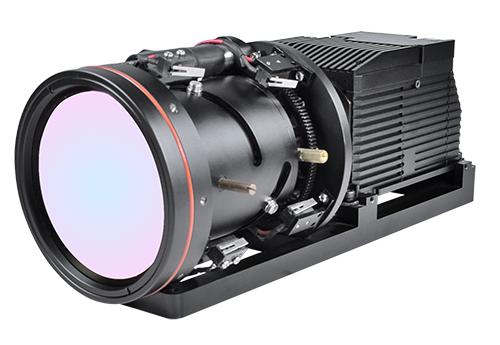

Thermal Camera Module (Cooled MWIR)

MIC640S

iTherml Thermal Camera Module MIC640S is utilized MCT midwave cooled IR sensors with high sensitivity, integrated with advanced image processing algorithm, to provide vivid thermal image videos, to detect objects in details in total darkness or harsh environment, to detect and recognize potential risks and threats at long distance.

Thermal Camera Module MIC640S is easy to be integrated with multiple interface, and available to be customized rich features to support user's second development. With the advantages, they are ideal to be utilizd into thermal systems such as Handheld thermal systems, surveillance systems, remote monitoring systems, search and track systems, gas detection, and more.

Technical Features

■  IR resolution up to 1280 x 1024 pixels
■  Pixel pitch 12μm | 15μm
■  Frame rate from 25Hz to 120Hz selectable
■  Auto brightness & contrast control
■  Vivid imaging video during optical zoom
■  Pseudo analog video output
■  HDMI & Camera-link digital video output
■  Customized FOV switch available
■  Multiple-interface for easy integration
■  Variety of continuous optical zoom lens available

Technical Parameters

Detector Data

Detector Type

Mid-wave Cooled MCT IR detector

IR resolution

640 x 512 pixels

Pixel pitch

15μm

Spectral range

3.7~4.8μm

Cooler

Stirling

Image Performance

Thermal sensitivity (NETD)

≤20mK@25℃, f/2.0

Cooldown time

≤8 mins (@25℃)

Frequency

25 Hz, 30 Hz, 50 Hz, 60 Hz, 100 Hz, 120 Hz selectable

Digital zoom

x1, x2, x4 (x1~x4 continuous zoom optional)

Image algorithm

Non-uniformity Correction(NUC), Auto Gain Control (AGC); Intelligent Detail Enhancement (IDE)

Image flip

Horizontally & Vertically

Image setting

Auto brightness & contrast control, Support external synchronization control, Polarity swtich

Video

Analog video

Pseudo analog video output, PAL

Digital video

HDMI, Camera-link

Lens Data(FYI)

Lens Options

15~300 mm F4
23~450 mm F4
30~660 mm F4
40~825 mm F4

External Interface

Primary electrical connector

J30JZ 25-pin

Communication

RS422

Power Data

Working voltage range

24 ± 4 VDC

Power dissipation

≤20W@25℃ (Steady)

Physical Data

Weight (w/o lens)

＜1000g

Size (w/o lens)

165 x 65 x 107 mm

Vibration & Shock

Vibration: GJB Vehicle-mounted high speed transport; Shock: half-sine wave, 40g 18ms,3 axis 3 times each

Environment Data

Operating temperature range

-40℃～+60℃

Storage temperature range

-40℃～+70℃

Packing Includes

Standard

Thermal Camera Module, serial interface cable
