Thermal Imaging Core

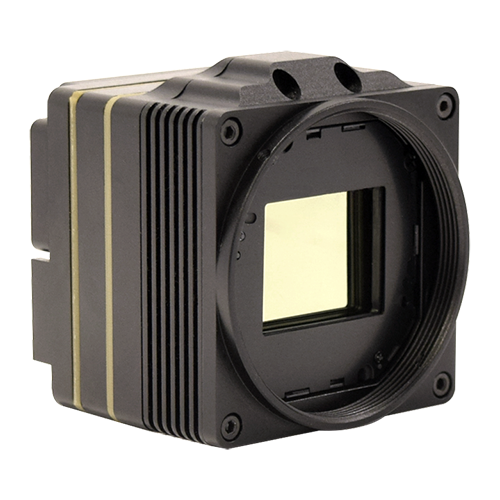

SupCor1280

iTherml Thermal Imaging Core SupCor1280 is with a 12μm remarkable 1.3 MP Vox detector, provides vivid HD thermal video output to ensure user to see more subject details in any harsh environment.

Thermal Camera Core SupCor1280 utilizes image enhancement for advanced image processing, and being embeded with Auto-focus driver to offer clear thermal imaging video with zoom lens.

The core SupCor1280 is easy and convenient integrated into thermal systems with multi interface output, and widely used for thermal security and surveillance systems, as well as in industrial imaging systems.


Technical Features

■  High resolution: 1280 x 1024 pixels,
12μm
■  Small size: 48 x 48 x 44.8 mm (w/o lens)
■  Light weight <170g (w/o lens)
■  Time to image < 8s
■  Continuous digital zoom: 65x - 400x
■  Pseudocolor analog output
■  HDMI digital video output
■  Auto-focus driver integrated
■  Cameralink interface optional
■  Expansion board available
■  Variety infrared lens optional

Technical Parameters

Detector Data

Detector Type

Uncooled LWIR VOx Microbolometer detector

IR resolution

1280 x 1024 pixels

Pixel pitch

12μm

Spectral range

8~14μm

Frequency

50Hz | 60Hz

Image Presentation

FFC duration

<0.5s

NUC calibration

Auto | Manual, NUC interval time adjustable

Thermal sensitivity(NETD)

<35mK @300k, f1.0

Time to image

<8s

Digital zoom

continuous digital zoom x65 - x400

Image control

Image mode(AGC), digital zoom, false color or monochrome thermal video,
contrast, brightness, sharpness, denoise, system settings

Image mode

Auto BG, Auto FG, Manual

Core control

Auto | Manual via GUI or serial command

Analog video output

PAL (standard), NTSC (optional)

Digital video output

HDMI (BT1120 | 1080p50Hz, Cameralink optional)

Interface

Primary Electrical Connector

60-PIN output (standard board)
40-PIN output (expansion board)

Control port

UART | RS232 LVCMOS +2.5V~3.3V

Working Voltage Range

VDC: +5.0V ~ +6.0V

Power dissipation

<3.5W@5V (<10W@max)

Environment Data

Operating temperature range

-40℃~+60℃

Storage temperature range

-40℃~+60℃

Physical Data

Weight (w/o lens)

<170g (w/cover)

Size (w/o lens)

48 x 48 x 44.8 (w/o lens)

Mounting

3 M2 X 3.5 mm at button of frame

Encapsulation

IP67 (for lens)

Packing Includes

Standard

Thermal imaging core, serial Interface cable, manual CD, warranty card

Optional

IR lens
