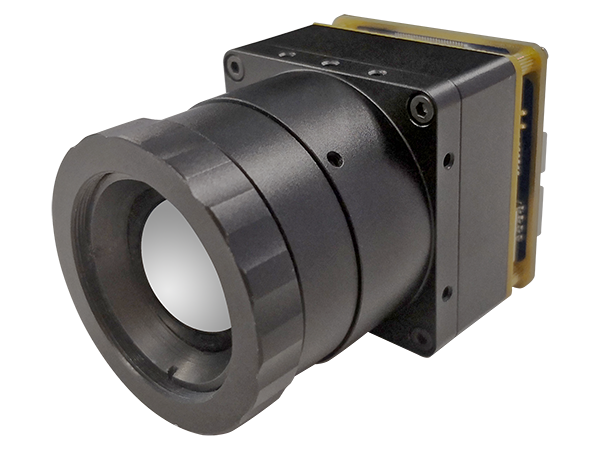

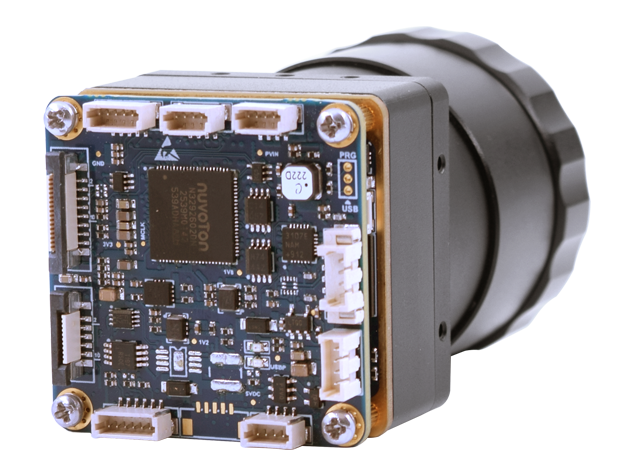

Thermal Camera Core

TNV-30 | 60 | 60S

iTherml Thermal Camera Cores TNV Series are embedded with high sensitivity of α-Si and Vox sensors, provide good performance of thermal imaging video, to assist user to see more subject details at harsh environment.Also they are with common mechanical constructure and electrical interface for different level sensors, offer thermal integrators for easy & convenient thermal device integrations.

Technical Features

■  IR resolution: up to 1280 x 1024 pixels, 17μm
■  Multiple zeroing profiles
■  High shock resistance
■  Continuous digital zoom
■  Menu keypad supported
■  UART communication
■  Pictures captured, videos recorded, and playback
■  Pseudo analog video output
■  Digital video supported OLED display
■  Small size, Low power comsuption
■  Customized features optional
■  Customized language optional

Technical Parameters

Detector Data

Detector Type

Uncooled LWIR α-Si detector

Resolution

TNV-30: 384 x 288 pixels
TNV-60|60S: 640 x 480 pixels, 17μm

Spectral range

8~14μm

NETD

Up to <30mK (@25℃,F#=1.0 )

Frequency

50Hz

Image Presentation

Non uniformity calibration

Shutterless technology

Time to image

TNV-30 <3s
TNV-60 | 60S <5s

Digital zoom

Continuous zoom(80~400) via menu, 1x, 2x, 4x via hotkey

Video polarity

Whitehot, Blackhot, Speia, Iron, Rainbow, Fire

AGC mode

Auto FG | Auto BG | Manual | eAuto FG | eAuto BG

Image control

Image mode(AGC), digital zoom, false color or monochrome thermal video,
contrast, brightness, sharpness, postion, bad pixels, system settings

Analog video output

CVBS

Digital video output

SUBLVDS, MIPI (8-bit BT.656 optional)

Dual-view video

Optional supported (Thermal video, visual video, fusion video)

Interface

Communication

UART/RS232, LVCMOS 2.5V~3.3V compatible

Storage

Built-in 32G

OLED display

SUB LVDS & MIPI supported

Menu Keypad

Supported

USB

Data transfer & 5V external power supply

Power switch

Soft switch or Hard switch

Battery

DC 2.5V - 6.0V, only supported rechargeable Li-ion battery;
Protection: overvoltage, undervoltage, and reverse connection.

Wifi

Optional

Auto-focus

Optional

General

Voltage

DC 2.5V - DC 6.0V

Power dissipation

TNV-30: <0.8W(media off), 1.4w(media on)
TNV-60 | TNV-60S: <1.1W (media off), 1.7w (media on)

Size (w/o lens connector)

38 x 38 x 26 mm

Weight (w/o lens connector)

60 g

Lens connector

M34 x 1 mm (standard, optional to be customized)

Working temperature range

-40℃ ~ + 60℃

Storage temperature range

-40℃ ~ +60℃

Shock

750g/1 ms

Humidity

<90% RH

Mounting

4 M2 x 4mm

Lens data

Infrared lens

15mm, 19mm, 25mm, 35mm, 50mm, 75mm, 100mm, 150mm, 225mm
(Manual focus, Fix focus, and Moto focus)

Packing Includes

Standard

Thermal imaging core, Interface cable

Optional

Infrared lens | OLED display | Eye-piece

View Full Specifications

Accessories

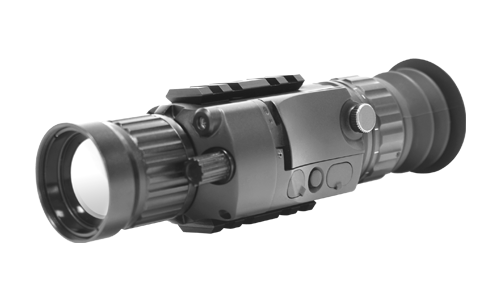

Thermal Imaging Monocular
