iTherml offers Shuttereless thermal imaging products at the global market

AgaSee-6B AgaSee-6E Owlook-C5 Owlook-C7
  • Thermal Imager Clip-on
Thermal Imager Clip-on

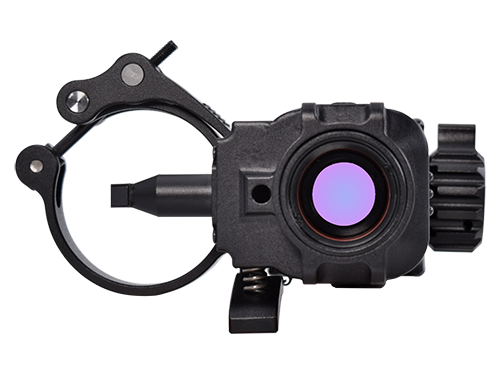

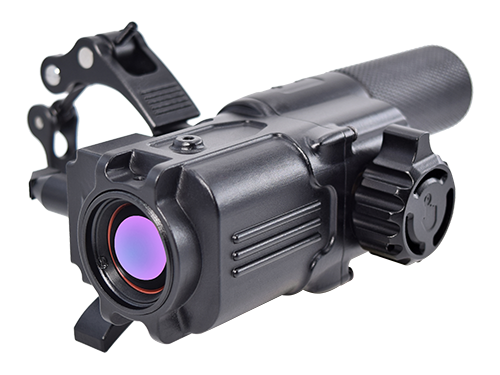

AgaSee-6B

iTherml thermal imager AgaSee is embedded with high sensitivity of 12um sensor, offers high performance thermal imaging video, and provides silent & continuous thermal imaging video with Shutterless thermal technology.

Thermal Imager Clip-on AgaSee can mount on night vision devices quickly, enhance their detection capabilities to recognize the potential targets at harsh environment with fusion video, or separate display of both sensors, particularly in low or no light environments. AgaSee is with low power comsumption to make its operating time up to 10 hours by 1pc 18650 battery, or no operating time limit by external power supply.


Technical Features

■ Lightweight & fast mounting to support convenient operation
■ Shutterless technology to provide silent & continuous video
■ Multiple fusion modes to enhance recognition performance
■ 41° Wide FOV to match with most of night vision devices
■ Up to 10 hrs working time with 1pc 18650 battery

Technical Parameters

Detector Data

Detector Type

Uncooled FPA

IR resolution

640 x 480 pixels

Pixel pitch

12μm

Spectral range

8~14μm

Frequency

50 Hz

Lens Data

Focus Length

10.15 mm | f1.0

FOV

41°

Detection range (target size: 1.8 x 0.5m)

580m

Image Performance

Thermal sensitivity(NETD)

≤40mk@25℃

Non-Uniformity Correction

Shutterless

AGC

x1, x2, x4 (x1~x4 continuous zoom optional)

Brightness adjustment

Supported

Contrast adjustment

Supported

Sharpness adjustment

Supported

Denoise adjustement

Supported

Compass

Supported

Video

Analog video

PAL

Display mode

White hot | Hightlight | Outline

External Interface

Communication

RS232

Power Data

Power supply

18350 | 18650

Operating time

Up to 10 hours

Physical Data

Weight

<130g

Size (w/o Clip)

101.7 x 45 x 38.5 mm (with #18350 battery); 131.7 x 45 x 38.5 mm (with #18650 battery)

Compatibility

PVS-14, PVS-7, PVS-15,PVS-29, and others

Environment Data

Operating temperature

-40℃ ~ +60℃

IP Encapsulation

IP67

Packing Includes

Standard

Thermal Imager, Mounting bracket
