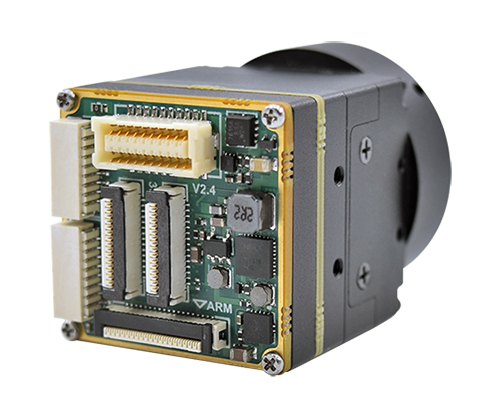

iTherml Thermal Camera Modules TNV Series are embedded with high sensitivity of α-Si and Vox sensors, provide good performance of thermal imaging video, to assist user in seeing more subject details at harsh environment. Also they are with common mechanical constructure and electrical interface for different level sensors, offer thermal integrators for easy & convenient thermal device integrations.
Technical Features
■ IR resolution: 640 x 512 pixels, 12μm
■ Multiple zeroing profiles
■ High shock resistance
■ Continuous digital zoom
■ Menu keypad supported
■ UART communication
■ Pictures captured, videos recorded, and playback
■ Pseudo analog video output
■ Digital video supported OLED display
■ Small size, Low power comsuption
■ Customized features optional
■ Customized language optional
Uncooled LWIR Vox detector
640 x 512 pixels, 12μm
8~14μm
Up to <35mK (@25℃,F#=1.0 )
50Hz
Shutterless
<5s
Continuous zoom (80~400) via menu, 1x, 2x, 4x via hotkey
Whitehot, Blackhot, Speia, Iron, Rainbow, Fire
Auto FG | Auto BG | Manual | eAuto FG | eAuto BG
Image mode (AGC), digital zoom, false color or monochrome thermal video,
contrast, brightness, sharpness, postion, bad pixels, system settings
CVBS
SUBLVDS, MIPI (8-bit BT.656 optional)
No (Only Thermal video)
UART/RS232, LVCMOS 2.5V~3.3V compatible
Built-in 32G (extended board, optional)
SUB LVDS & MIPI supported
Supported
Data transfer & 5V external power supply
Soft switch or Hard switch
DC 2.5V - 6.0V, only supported rechargeable Li-ion battery;
Protection: overvoltage, undervoltage, and reverse connection.
Optional
Optional
DC 2.5V - DC 6.0V
<1.1W (media off), 1.7w (media on)
28 x 28 x 26 mm
30 g
M29 x 0.5 mm (standard, optional to be customized)
-40℃ ~ +60℃
-45℃ ~ +70℃
750 g/1 ms
<90% RH
4 M2 x 4 mm
15 mm, 19 mm, 25 mm, 35 mm, 50 mm, 75 mm, 100 mm, 150 mm, 225 mm
(Manual focus, Fix focus, and Moto focus)
Thermal imaging core, Interface cable
Infrared lens | OLED display | Eye-piece
